Custom X-mini II speakers
The Custom X-mini II speakers have been replaced. See current mini-speakers. The following has been retained for reference.
These new high fidelity speakers were custom-made for Cetacean Research Technology and were included in our SQ26-H1 hydrophone system. They are great little speakers. Simply connect them to the headphone output of the recording device and listen to the clear sounds of the underwater world.
- X-mini in Pelican case

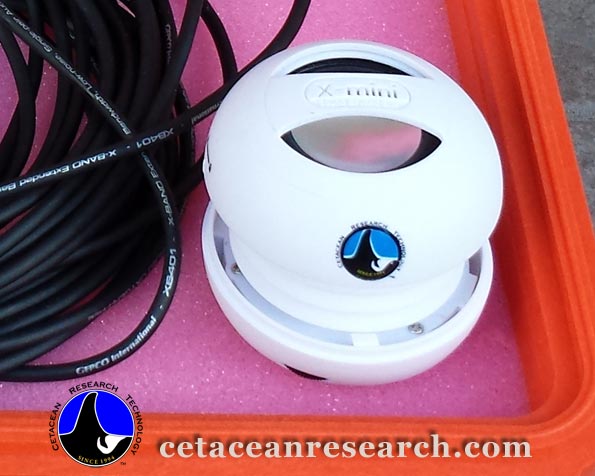

Photo of custom X-mini II speaker, in open position, shown in a Pelican case for scale, along with some cable from the hydrophone system. The X-mini was included in our versatile, compact SQ26-H1 hydrophone system See current mini-speakers.
- X-mini, open

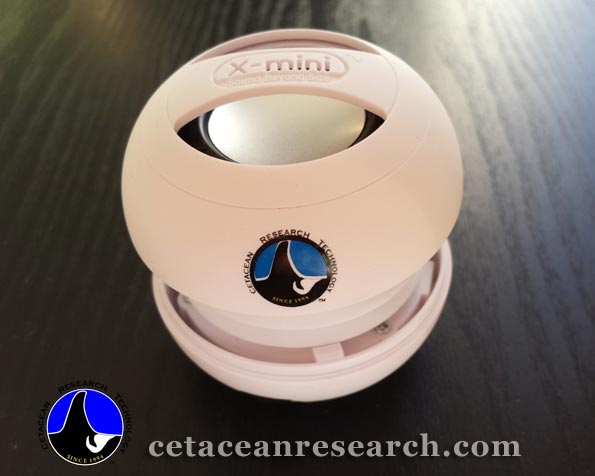

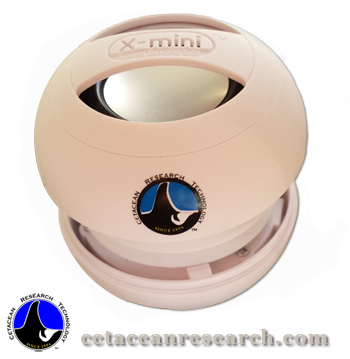

Photo of custom X-mini II speaker, in open position. See current mini-speakers
- X-mini, closed

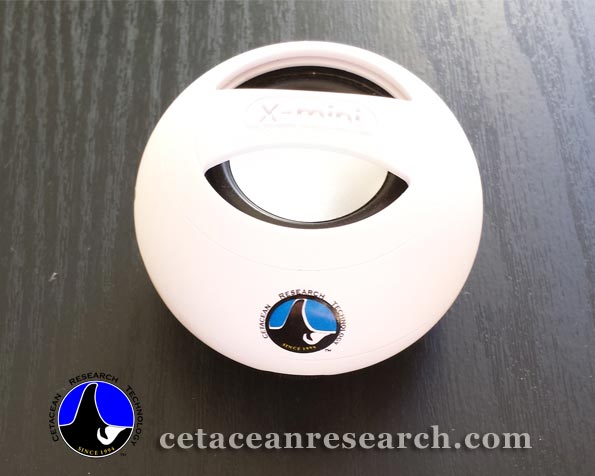

Photo of custom X-mini II speaker, in closed position. Little speakers with a big sound. Can be added to any of our hydrophone systems. Simply connect them to the headphone output of the recording device and listen to the clear sounds of the underwater world. See current mini-speakers.
| Net Weight: | 83g |
|---|---|
| Speaker: | Magnetically Shielded 40mm (4Ω) |
| Loudspeaker Output: | 2.5W |
| Frequency Response: | 100Hz - 20kHz |
| Signal-to-Noise: | ≥80dB |
| Distortion: | ≤1.0% |
| Playback Time: | Up to 12 hours |
| Battery Capacity: | 400mAh |
| Battery Charging Voltage: | 5V |
| Battery Charge Time: | Minimum of 2.5 hours |
