C305 Hydrophones
Cetacean Research™ C305 Hydrophones, shielded versions of the Cetacean Research™ C304XR with a tougher encapsulation, are available for purchase.
The Cetacean Research™ C305 series hydrophones have a directional receive pattern with very wide frequency response for monitoring ultrasonic signals not detectable by competing brands. The connector is an integral part of the hydrophone. Hydrophones are not individually calibrated but calibrated frequency response measurements can be performed on request.

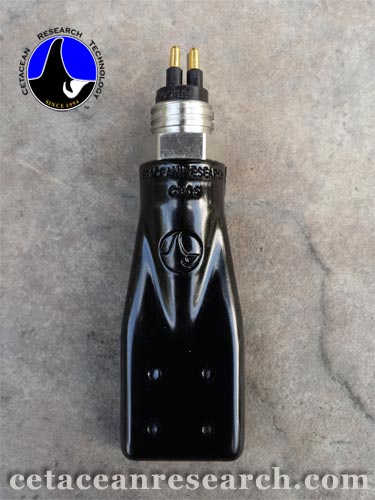

- C305 Hydrophone top view
top view of the new Cetacean Research™ C305 Hydrophone.

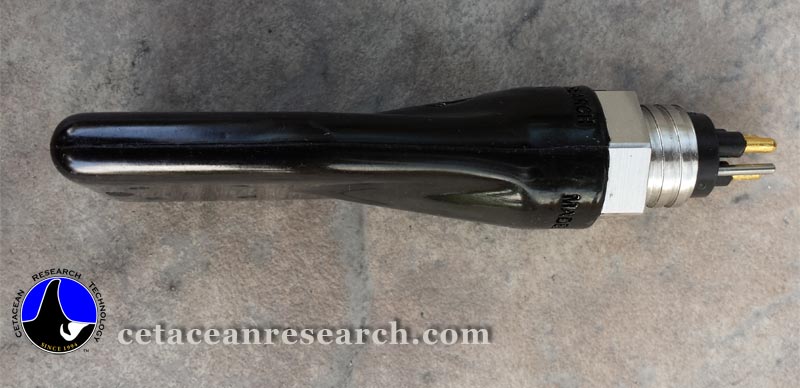

- Cetacean Research™ C305 Hydrophone edge view
side or edge view of the Cetacean Research™ C305 Hydrophone.

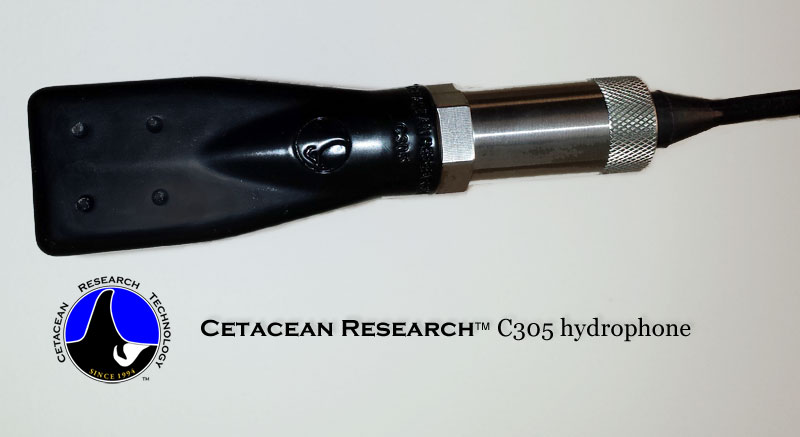

- Cetacean Research™ C305 Hydrophone with sleeve
Cetacean Research™ C305 Hydrophone, with stainless steel locking sleeve.

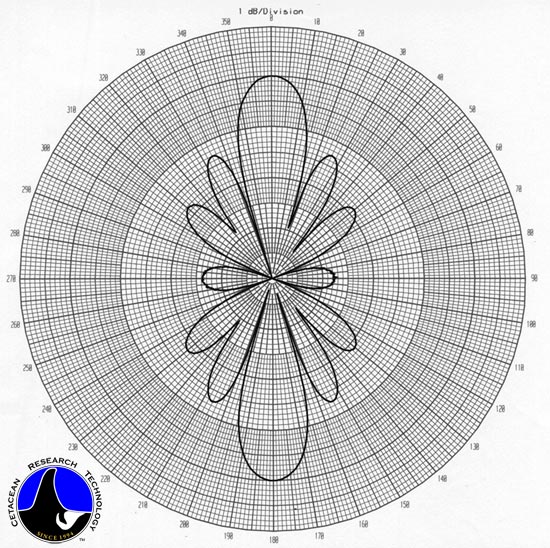

- Cetacean Research™ C305 Hydrophone Beam Pattern
200kHz horizontal receive pattern for the Cetacean Research™ C305 Hydrophone, showing receiving directivity response.

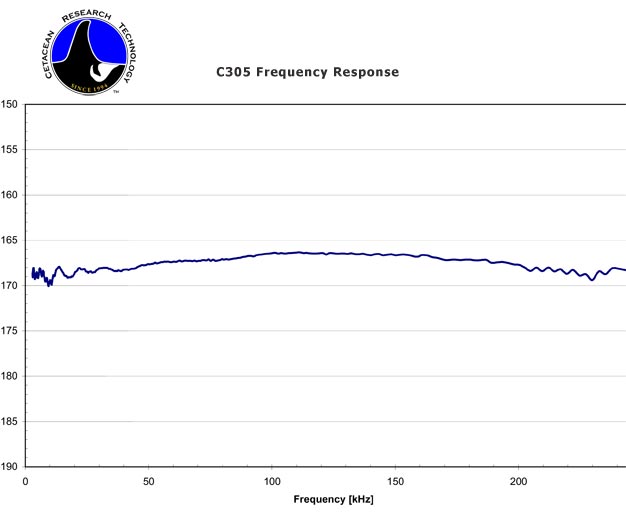

- Cetacean Research™ C305 Frequency Response
plot of Cetacean Research™ C305 Hydrophone Frequency response.

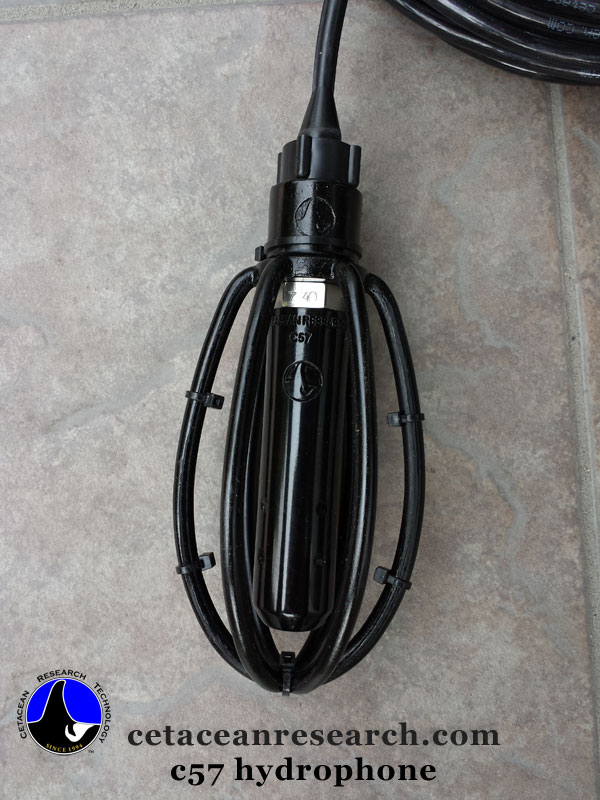

- hydrophone protection cage
option: add a Hydrophone Cage for protection, flow noise reduction (shown with Cetacean Research™ C57 hydrophone). view more
| C305 / C305X | |
| Linear Frequency Range (±3dB) [kHz] | 0.012 to 1200 / 0.012 to 250+ |
|---|---|
| Usable Frequency Range (+3/-12dB) [kHz] | 0.005 to 2000+ / 0.005 to 250+ |
| Transducer Sensitivity* [dB, re 1V/µPa] | -198 |
| Preamplifier Gain [db] | 20 / 33 |
| Effective Sensitivity* [dB, re 1V/µPa] | -178 / -165 |
| SPL Equiv. Self Noise at 1kHz [dB, re 1µPa/√Hz] | ≈ 63 |
| Power Requirement [Vdc] | 5 to 32 |
| RMS Overload Acoustic Pressure [dB, re 1µPa] | 182 to 199 / 169 to 186 |
| Maximum Operating Depth ** [m] | 920 |
| Operating Temperature Range [°C] | -40 to 60 |
| Output Impedance [Ω] | 10 |
| Dimensions † [mm] | 110L x 38W x (25 to 11)T |
| Integral Connector **** | Subconn MCBH3MSS |
** 1,000 meter versions are available. Append "-1k" to the model number to order a hydrophone with a depth rating >1,000 meters.
*** Connectors are rated to a depth of 7,000 meters; see below (or to the side) for mating connector and cables.
Shielded Cable Length [m]
- mating connector molded to 15, 30, or 50 [m] shielded cable
- other lengths available on a custom order basis
- cable includes Integral Connector rated to a depth of 7,000 meters.
Options
- removable in-line high-pass filter
- external power supply support
- hydrophone protection cage
- custom orders not listed above
Battery / Connector box
Battery boxes are rated NEMA-4X water resistant. Standard signal connection for the Cetacean Research™ C305 hydrophone is through a watertight female BNC connector with gold center contact. The hydrophones are powered by one 9V battery (not included) or an optional long-life rechargeable, external power supply.
| Signal Output | Female BNC connector |
|---|---|
| Battery Life [hours] | > 20 |
| Box Dimensions [mm] | 110 long (including connectors) x 90 wide x 50 high |
Notes:
The Cetacean Research™ C305 replaced the Cetacean Research™ C304XR
The Cetacean Research™ C305X replaced the Cetacean Research™ C304.
View reference information on the Cetacean Research™ C304 hydrophone series.
